| Audes
Loudspeaker
Model
037 |
|
| Clement
Perry |
| 24
August
2001 |
Specifications
Design:
4-way speaker
Crossover
filters used
in Audes-037
are as
follows:
Bottom woofer
- 1st order (6
dB/Oct) LPF at
320 Hz
Top woofer -
1st order (6
dB/Oct) HPF at
320 Hz, and
3rd order (18
dB/Oct) LPF at
1kHz
Midrange
driver - 1st
order (6
dB/Oct) HPF at
1kHz, and 1st
order (6
dB/Oct) LPF at
3.8 kHz
Tweeter - 1st
order (6
dB/Oct) HPF at
3.8 kHz
Price: $1,199
Drivers:
(2) 8"
Audes cone
woofer
(1) 1
3/4"
Audes dome
midrange
(1) 1"
Audes soft
dome tweeter
Frequency
range: 38 to
20,000 Hz
Sensitivity:
90dB
Size: 48"
tall ×
10" wide
× 11"
deep
Weight: 66lbs.
Website: www.audes.com
Contact: Naum
Dorkhman
Your
reporter:
"How
much?"
Speaker
designer:
"$100,000
sir."
YP: "Not
bad for an
entire
system"
SD: "No
that’s just
the
speakers"
YP: after a
short pause:
".... I
heard
that!"
At
this past 2001
CES there were
about four
manufacturers
debuting new
loudspeaker in
excess of
$100,000. This
is news
because
everyone I
know is
spelling
doomsday for
two channel
high-end
audio.
Potential
newbies fresh
from Ivy
League
colleges,
forecasters
claim, are
seeking
satisfaction
in alternative
vices like the
Web, MP3,
Satellite TV,
DVD-A, DVD-V,
and Video game
software. Yet,
there I was
inside THE
SHOW,
stargazing at
these products
while fearless
manufactures
glared into
the very faces
of these
ominous
prophecies.
Glaring, I
might add,
alongside
their newest
offspring in a
way that would
make PT Barnum
proud.
Go
figure.
Thank
you Dear Lord,
for the many
entry level
(headed)
manufactures
like
Coincident's
Israel Blume
and
Silverline's
Alan Yun. Both
gents
displayed
their newest
models which
looked ultra
expensive but
are priced in
the
$5,000-$6000
range (I look
forward to
reviewing both
these models).
At this
January’s
CES, Audes'
marketing guru
Naum Dorkhman,
debuted his
first
statement
product, the
$10,000
Poseidon
Reference.
Beautifully
finished and
smartly
designed with
each driver in
independent
enclosures
built atop
each other.
The Poseidon
begs likeness
to B&W’s
famed Nautilus
loudspeaker,
minus the
expense. Audes
also
introduced
another
statement in
the all too
important
price/performance
arena, the
wonderfully
affordable
Audes 037
loudspeaker.
The
Audes 037's,
says Naum,
"…hails
out of
Estonia,
formally the
Soviet
Republic, and
is developed
under their
Gloria line
Home Theater
products [not
part of this
review], but
which includes
their center
channel (CS
015), rear or
mini monitors
(model 111),
and a
subwoofer (SW
110A). A 3-way
floor stander,
the Model 017,
is available
if the need to
go with
shorter fronts
ever
arises."
For
all the good
sounding,
affordable
loudspeakers I
have
personally
heard or
auditioned
through the
offices of
Naum, the
Audes ought to
be hailed as
one of this
industry’s
modern day
Saving Graces.
Right
alongside
digital maven
Mark Schifter’s
Perpetual
Technology
products and
budget cable
designer
extraordinaire
Bob Finch of
Custom House.
When it comes
to affordable
excellent
sounding
products,
these three
are hard to
beat in their
respective
playing field.
I've known
Naum for three
plus years and
reviewed his
amazingly
affordable
mini-monitors,
the Model 111’s
(retailed for
$599. see
archives),
back in
January of
last year. The
questions that
ceaselessly
come to mind
are; 1) how
can he price
his product so
low and expect
to make any
profit while
avoiding the
pitfalls ala
Audio Alchemy?
And, 2) how
does he
accomplish
this while the
competition
seems to
steadily
climb?
Answer:
Audes imports
from a part of
the world
where the cost
of parts and
labor are well
below that of
the United
States and
other
countries.
Established
in 1959 as a
transformer
and cabling
manufacturing
facility for
the Soviet
Ministry of
Defense, Audes
began
designing
high-end
loudspeakers
officially in
1984. Since
1992, Audes is
one of only a
very few
companies that
have their
components,
drivers,
cabinets and
crossover
assemblies
built
in-house. This
keeps their
costs down and
their quality
control
standards very
high.
Naum
personally
dropped off
his newest
design since
he's only a
stones throw
away me in
northern New
Jersey.
Assisting him
move the pair
of 037's out
of his SUV
caught me off
guard; their
weight was
imposing.
"Hey Naum,
what the hell
are in these
boxes and what
do they
weigh?",
I cursed.
" Clem...
not light
stuff, huh
babe? Over 70
lbs." The
were nothing
like the older
models I'd
auditioned
previously,
that's for
sure, and they
were good
sounding too.

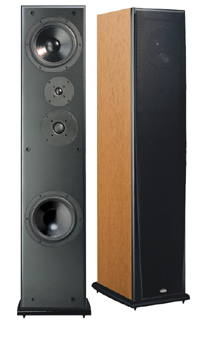

Taking
the Audes
037's out of
their shipping
boxes was much
easier than
the attempt to
move them
alone (two
folk
minimums),
showing off
this nicely
styled floor
model. For
aesthetic
appeal, the
037’s come
with a very
nice set of
footers for
their base. I
am not sure if
there's
improved sound
with or
without them,
but stability
is sure
notably better
with them
installed
since this
design is tall
and very well
could tip
over.
Technical
Attributes
The
Audes 037, a
4-way,
floor-standing
loudspeaker,
utilizing two
8"
woofers, each
mounted in its
own chamber
for different
tasks. The
bottom woofer
employs a
large 50-mm
voice coil
that operates
in a (1.55
cubic foot)
ported loaded
enclosure. The
upper woofer
located atop
the 037, uses
a 40-mm voice
coil and
operates in a
(0.7 cubic
foot) sealed
chamber. The
midrange
driver is
Audes' own
proprietary
design
employing a
single 1
2/3" soft
dome driver.
Its high
frequency
driver is a
1" soft
dome tweeter
with a ferro-fluid
filled
magnetic gap.
All four units
are original
Audes drivers
and are made
under strict
control to
meet their
specifications.
Since
all Audes
drivers are
made in-house
there's really
nothing to
compare them
with. I did
take out both
the 8"
woofers and
the 1
3/4"
midrange to
get a closer
inspection.
Both are
substantially
built if sheer
weight and
structure
should ever
serve as an
indicator. All
wiring is
point to
point, build
is sturdy and
the finish
(mine were in
a dark cherry
veneer)
appears to be
top rate.
Using a
D'Appolito
type
configuration,
both the
midrange and
tweeter are
sandwiched
between the
woofers while
the tweeter is
located
slightly to
the left of
center of the
midrange. The
Audes 037's
are biwireable
via gold
plated
five-way
binding posts,
but just in
case Joe
Audiophile
only owns a
single pair of
speaker
cables, the
037's also
come with a
standard set
of jumper
adapters.
Evaluation
equipment was
diverse as I
now use a wide
variety of
products in
different
parts of my
home. The
downstairs is
home to some
reference tube
equipment
along with Ric
Cumming's all
new Rosinanté
Dulcinea
loudspeakers.
Tube
amplification
is the
amazingly
musical
single-ended
device by Art
Audio called
the Jota
strapped to a
biwire run of
the superb
sounding
Wasatch
cables, power
cords and
interconnects.
Richard Gray's
400 and 1200
A/C line
quenchers were
employed for
exacting the
most out of
this
combination.
The digital
equipment was
Mark
Schifter's
Perpetual
Technologies
P1A/P3A combo,
with the Dan
Wright
ModWright
upgrade. I did
take the time
to insert that
little demon
of a D/A, the
D/IO, for some
very
interesting
observations.
It didn't stop
there either.
I installed
the 037's into
a home theater
environment as
well. Using
the new Sampo
widescreen
34" HDTV
monitor with
the new Onkyo
TX DS676
receiver,
strapped to a
superb
sounding BMB
Custom
loudspeaker
system out of
Singapore.
Impressions
No
matter the
listening
environment,
the 037's
never once
seemed to be
out of their
sonic league.
They produced
with a level
of form and
dexterity that
any music
lover would
have
applauded.
However, that
said, it was
listening to
jazz and old R
& B
through the
Art Audio Jota
amplifier that
proved a
delight as I
always found
myself lost in
the music. The
037's seem to
excel at pace,
rhythm and
bass. The Jota
seems to excel
at passing
information
for its
resolution is
immediately
obvious and
perhaps state
of the art.
The 037's
didn't miss
much in terms
of what was
passed to
them.
The
037's bass is
particularly
impressive,
sounding
expressively
percussive on
strong bass
material like
Dean Peer's I
Think...It's
all Good
(Turtle
Records ###),
which I, along
with many
others here at
ST, consider a
bass
performance
reference
disc. Track
one, entitled
"Air
Circus #
1" is
scary as well
as dangerously
delightful.
This disc can
do some
serious damage
to ones system
if played
vociferously,
due mostly to
its incredible
dynamics and
bass impact.
I really think
that there
should be a
warning
sticker
attached to
this disc!
Nevertheless,
driven by the
Onkyo, the
037's weave
effortlessly
through this
track deftly
and with such
a degree of
balance one
would NEVER
associate with
a speaker at
this price.
This disc
proved to be
more taxing on
the receiver
due to its
modest power
rating. Still,
one of the 037’s
most
convincing
features is
that it
doesn't
require gobs
of power to
get going. If
you're a
beginner
starting with
a modest
receiver rated
at 85 watts
per side, like
the Onkyo for
example, the
037’s will
bring out the
best in your
receiver.
Moreover, you
really can't
expect better
efficiency.
Taking
the 037's to
the upstairs
system brought
about even
more
surprises.
Strapped to
the Sunfire
Theater Grand
and playing
Dolby Digital
by means of
the Citation
7.0 Dolby
Digital
processor,
they performed
as
impressively
as one would
expect from a
speaker
selling for
twice their
price. With
the 200 watts
the Sunfire
delivers in
five channels,
the first
thing I
noticed was
how much
tighter,
cleaner and
deeper the
bass went on
the 037’s. I
thought the
200 watts
would tax the
037’s in
terms of
dynamic
limitations
but the 037’s
definitely
stayed intact
and became
even more
musically
tuneful. To be
truthful, I
didn’t
expect the 037’s
to sound this
convincing for
their price.
They
inevitably
performed
extremely well
regardless of
the material,
though there’s
a hint of
brightness
that did prove
problematic
when driven to
extremes. This
occurred when
I pushed the
Sunfire to the
037’s
threshold as I
would have
guessed when
you’re SPL
meter is
reading over
95dB! Aside
from that,
when playing
at normal
listening
levels not
exceeding more
than 85dB or
so, the 037’s
will offer a
level of
satisfaction
is hard to
find in its
price class.
One
of my most
recent
pleasures has
been my
reacquaint
with '70's
R&B music,
most notably
Stevie
Wonder's 1973
Grammy winning
Innervisions
[Motown
3746303262].
This disc
offers a
plethora of
masterfully
written music
that set the
industry upon
its proverbial
ear back in
the day. As a
young pimple
faced teen
listening to
this LP, my
love for
Rhythm and
Blues was
propelled that
much further
by the
unbelievable
music
intertwined
with brilliant
lyricism. I
remember
sitting for
hours patting
my feet,
rocking in my
seat
attempting to
learn each
syllable
Stevie sung in
his instantly
recognizable
style. "Livin'
for the
City" was
the first, and
my most
memorable
song. I was
pleasantly
surprised by
not only by
037's
abilities to
present it so
realistically,
but also by
how good this
disc actually
sounded
considering
it's a dated
and commercial
recording. Not
an audiophile
reissue for
sure, it
nevertheless
sounded
wholesome,
three-dimensional
and sweet.
There's a
certain part
in "Livin'
for the
City"
where a young
man’s voice,
coming through
the Big Apple’s
Bus Terminal,
utters
"Wow! New
York. Just
like I
pictured
it...Skyscrapers...everything."
Through
the 037’s,
with the
Citation 7.0
set to
two-channel
mode, this
spoken voice
came through
with a sense
of
individuality
and realness;
a quality I
was not
accustomed to
with the
exception of
my more
expensive
setups.
Credit, in
part, should
go to the
improved
ancillary
electronics
that now exist
in my audio
rig, but also
to the talent
that lies in
the 037's.
All
in all, I
would have to
say that as
far as
affordability
goes, Audes
has outdone
the
competition in
a way few
manufacturers
have. No
higher
compliment can
be granted for
any speaker
company that
aims its focus
at real-world
consumers,
music lovers
and new
generation
audiophiles.
Naum
Dorkham has a
real winner in
the 037's.
Anyone looking
for a
loudspeaker
that sounds as
good as some
highly
regarded
products at
more than
twice the
price should
not hesitate
to audition
the 037's.
In
closing,
there's a song
on the Innervision
album entitled
"Don't
You Worry
'Bout a
Thing."
With the Audes
037's tucked
neatly into
your system,
while your
money stays
safe in your
bank account,
you shouldn't
worry one bit!
Highly
recommended!

|
