| The Dynaudio Audience 52SE
Loudspeakers |
| |
| Paul Szabady |
| July
2004 |

I’ve never been a fan of large, expensive,
multi-driver cone loudspeakers. I can count on
one hand the number of times in the last 32
years that a truly large and expensive dynamic
speaker system has sounded truly superb and
actually made music in a real-life listening
space. There are several reasons why large
expensive dynamic speakers can end up being a
poor investment of money.
One is the hugely frustrating and inescapable
fact that living spaces seem to be designed
for everything but accommodating large
loudspeakers in them. Symmetry, properly
staggered and sufficiently long room
dimensions, solidity of wall and floor
construction and other key elements of room
acoustics are so rare a commodity in actual
listening spaces that a prime dream for most
serious audiophiles is building a dedicated
listening room. Simply add $50,000 or so to
the price of the loudspeaker.
And you are still not guaranteed truly
accurate and neutral sound, not to mention
musical coherence and communication. Most
multi-driver dynamic speaker designs require a
distant listening position to get the drivers
to gel. Far too often this places one in the
reverberant area of the room where the given
room signature, the combination of reflections
and the volume of air through which the signal
passes all conspire to screw up frequency
response, phase coherency and transient
response: that is, if the speaker design was
capable of doing any of these essential
aspects of musical perception correctly in the
first place. This is a naive assumption with
many multi-driver arrays. Getting 4 or more
individual drivers to speak with one coherent
voice is a cruelly difficult task.
Large rooms demand large power outputs: double
the room size and you’ll need 4 times the
power output for the same sound pressure
level. Those unfortunate enough to see the
parts cost breakdown of a large multi-driver
dynamic speaker will be horrified to learn how
much of the cost of manufacture goes into the
cabinets. There’s something singularly
depressing about realizing that one’s $20,000
behemoth has, maybe, $300 worth of speakers
and components inside.
If I seem unusually merciless and jaundiced,
it’s the result of bitter experience of 25
years in the audio retail trade. Please note,
however, that I exempt large full-range
electrostatic and other panel single-driver
designs for large room playback. Most music
lovers are much better served sonically and
financially by setting up a hi-fi system in a
smaller room, utilizing what are commonly
called ‘mini-monitors’ – small, stand-mounted
2-way loudspeakers incorporating woofers of
6-inch diameter or less. The form has become
an archetype (it is the dominant format for
loudspeakers in the UK) and, while the genre’s
nickname is a misnomer (not many of them are
actually used as recording monitors,) the
small-box loudspeaker has been refined by many
European manufacturers to jewel-like
precision. The Dynaudio Audience 52SE is one
such jewel.

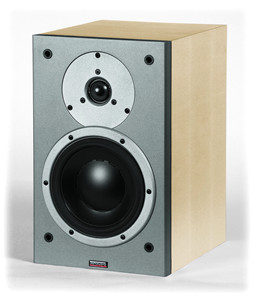

The Dynaudio Audience 52SE is a hot-rod
version of Dynaudio’s $800 per pair Audience
52: the SE adds the Esotec tweeter from the
more expensive Contour line along with a
mineral-doped polymer woofer cone and
dedicated, no-compromise crossover parts. In
keeping with their Danish tradition, the fit
and finish of the cabinets and the wooden
veneer is top-notch, though I must admit that
cosmetics are the least important criterion
for me in judging a product. Loudspeaker
cabinets are the last vestiges of the old
struggle to disguise hi-fi components as
furniture; as long as the visual design
doesn’t include fake pink fur and any
application of neon, any cosmetics are
irrelevant to me. My review samples were maple
with black grills; unobtrusive even in the
small rooms I used them in.
"The Dynaudio also
excelled at the simultaneous reproduction of
differing volume levels and at tracking the
subtle volume changes as an instrument plays a
given line."
As befitting a high-performance Special
Edition, the 52SE demands high quality
partnering equipment. Like many European
loudspeakers, the 52SE presents a 4-ohm load
to the amplifier. Its sensitivity is a low-ish
86 dB. Forget about Japanese mass-market
receivers and the criminal junk foisted off as
Home Theater amplification: their back panel
warnings of only using speakers of 8-ohm
impedance might as well say “Do not hook up
any real loudspeakers as the amplifiers are
not designed to play them.” Some amplifiers,
generally happy and competent into higher
impedances fall apart sonically into low
impedance loads, and some, while not changing
tonal balance or general response, lose their
ability to time and articulate rhythms. The
52SE’s design spec points to a high-quality
solid-state amp with unrestrained current
drive and speaker control for best results. My
antique EICO HF89 tube amp, blessed with
enormous output transformers tapped at 4 ohms
for the load, worked surprisingly well, but to
hear the speed and control of which the 52SE’s
are capable (particularly in the bass), a fast
and controlled amp is necessary. I ran 6
different amplifiers with the 52SE’s. You
don’t necessarily need to use a very expensive
amplifier but you do need to use a highly
competent and musical one. I used the $600
Rotel RB980 (225 watts into the Dynaudios’ 4
ohm load) for much of my listening.
The mini-monitor form is not without its own
set of practical problems. Although compact
enough to literally be bookshelf speakers, and
equipped with foam bungs to damp the
rear-mounted reflex port if the speaker is
placed within one inch of a back wall,
bookshelf placement of the 52SE will negate
one of the compelling reasons to own a
mini-monitor in the first place: their ability
to present a fully coherent stereo image of
almost hallucinatory intensity. Thus, speaker
stands are a necessity.
This raises another thorny question of
small-box speaker application. Many
manufacturers also produce a floor-standing
version of their small box speakers, the same
drivers mounted in a larger cabinet. The
larger cabinet can offer increased bass
response and/or efficiency with no need for
stands. (Dynaudio, for example, offers the
Audience 52 and the Audience 62, but no SE
62). I’m not willing to generalize
dogmatically about this, but experience
continues to point to the mini-monitor on
stands as being superior to a floor-standing
version of the same speaker. In part this is
due to the smaller cabinet size being easier
to design and build for less obtrusive
resonances, but also because floor stands have
evolved into a “component” on their own, to be
chosen on their own musical and sonic merits.
To a large extent, the small-box speaker lives
or dies based on the quality of its stands.
I
tried 4 different speaker stands with the
52SE’s, two wooden ones and two steel pillar
types. The $450 Dynaudio Stand 2 worked the
best, offering the most transparent results,
with greatest neutrality, control and bass
articulation. The stands feature a de-coupling
rubber sandwich in their top and bottom plates
and were night and day better than the other
$120/pair sand-filled metal stands I had
available. While placing speakers costing
$289/pair on the $450 Dynaudio stands might
appear ass-backwards, the sonic integrity of
my Celestion 3’s when played on them made
absolute musical and sonic sense.
The great advantage of small-box speakers is
that they use the smaller dimensions of their
intended room application to naturally enhance
their bass response. They let nature do the
work. There is something deeply satisfying
about a relatively tiny woofer reproducing
clear tight 30 Hz bass in a small room. Small
rooms also require less power to achieve a
given sound pressure level – you’re unlikely
to be further than 8 feet from the speakers -
and help by-pass the inherent power-handling
limitations of smaller woofers.
A smaller room will also place the listener
into the “near-field” of the speaker’s sound,
thus allowing a truer perception of its
intended frequency response and time-coherence
abilities. The resulting stereo illusion can
be breathtakingly coherent and accurate,
instruments emerging from a believable
soundfield totally unrelated to the speakers
themselves, which appear as mere roads signs,
truncated reminders of the eliminated
proscenium arch.
This is particularly true if one listens with
the speakers firing across the short dimension
of a rectangular room with a greater
separation between the speakers than the
distance to the listener. (The German
loudspeaker company Audio Physic, for example,
advocates setting up speakers halfway into the
short dimension of the room, and placed on the
diagonals of the wider wall. With the listener
adjacent to the back wall, one gets both
holographic stereo imaging and maximum bass
propagation.) One can literally create an
intimate acoustic immune to the larger
acoustics of the room – a cocoon of coherency
that allows unalloyed insight into the
acoustics of the recording venue.
The Dynaudio 52SE proved to be chameleon-like
in its response to varying electronics,
sources, speaker cables, stands, and room
placement. While it was possible to change the
results from soft and warm to a bit of too
clear and bright, it proved impossible to
totally screw-up its performance: the
speaker’s high resolution simply revealed the
changes made. “Uhh, a little less edge in that
interconnect there, LeRoy.” The immediate and
constant sonic impression of the 52SE’s was
that of speed, precision and agility.
Transient response across the speaker’s
bandwidth was simply superb: signals started
and stopped with no slop, blur, or smearing.
Since we use the initial transient of any
sound to locate that sound’s position, it’s no
surprise that the 52SE’s ability to precisely
locate instruments in the stereo field,
left-to-right and front-to-back, was
first-rate. The speaker’s frequency response
seemed all of a piece and unusually clear and
precise. Psycho-acoustically, an instrument’s
harmonic signature is revealed just
immediately after its initial transient, thus
identification of instruments was as clear as
the precision of their placement in space.
Accurate transient response also guarantees
that spaces and silences between notes remain
clear, leading to coherent re-creation of
musical lines, melodies, rhythms, and musical
phrasing. The Dynaudio also excelled at the
simultaneous reproduction of differing volume
levels and at tracking the subtle volume
changes as an instrument plays a given line.
Its articulation of the relation between lead
and accompanying instruments was excellent as
was maintaining individual instrumental
identity during crescendos and in tutti
playing. This ability also results in fine
reproduction of percussion instruments,
allowing both differentiation between various
percussion instruments and also faithfully
reproducing their dynamics and rhythms.
The frequency extremes were well depicted.
In-room bass response was able to reproduce
the 42 Hz lowest note of the acoustic and
electronic bass with clarity, precision, and
ease. I consider this the absolute minimum for
fidelity to music and also the point of
diminishing returns in speaker playback.
Pursuing accurate reproduction of the bottom
octave of music can be both frustrating and
expensive, and can all too readily collapse
coherence achieved from 40 Hz up. Performance
of the organ during the Saint Saen’s Organ
Symphony was electrifying, both in its subtle
introduction in the first movement and in the
thunder of the symphony’s finale. I felt no
need for any low bass augmentation. The high
frequencies were stratospheric, adding a
delicate and refined sense of instrumental
overtones and of the ambience of the recording
venue. The speaker’s bass response was low
enough to suggest the size of the venue
without fully delineating it. Fully
re-creating that illusion is one of the
benefits of ultra low bass response and one of
the often-ignored benefits of a high-quality
subwoofer. Given the small size of the rooms
the 52SE is designed to play in, I never felt
the need for a stronger hallucination of the
size of the recording’s acoustic space. There
is a certain disorienting surrealism in
conjuring a cathedral into the confines of a
13’ by 18’ listening room.
The Dynaudio 52SE is capable of very high
levels of resolution and fully revealed the
differences between CD players and the limited
resolution of the CD format itself. Not
surprisingly then, the speakers really shone
on high quality LP playback, offering not only
a vivid sonic perspective and reproduction,
but also allowing a deep insight into the
process of the music making itself. What the
musicians were doing was exceptionally clear.
Only a slightly detached presentation – a
subtle subjective feeling that the speaker was
telling you what was happening musically
rather than actually being that musical event
keeps these excellent speakers from ultimate
greatness. On an arbitrary pole of head and
heart, the 52SE’s were just slightly closer to
the head, instead of being, in my preference,
smack dab in the middle.
Another slight subjective quibble was a less
than perfect sense of the meaning of arrivals.
It was somewhat akin to watching a river flow:
the flow past you was as clear as could be but
there was some loss of the perception of where
the river was leading. Take for example Dave
Brubeck’s Time Out. The album incorporates a
variety of exotic time signatures rarely used
in music. The Dynaudios were fully capable of
completely articulating the rhythmic patterns,
along with revealing the interaction of
Brubeck’s left and right hands on the piano,
and contrasting the ‘dry martini’ sonority of
Paul Desmond’s sax. Joe Morello’s drumming was
completely clear. The reason, both aesthetic
and emotional, for the unusual rhythms was
less obvious. Perhaps this result is not fully
the fault of the speaker, but perhaps some
lack of clarity in the album concept itself,
or maybe in my own dimness as a listener.
Like many inefficient, low-impedance, small
woofer dynamic speakers, the Dynaudios fell
asleep at background Muzak levels. Since I
never listen at Muzak intensity, I wasn’t
bothered by this at all. At the 78 to 86 dB
SPL’s at which I usually listen, there was no
problem. Even at 90 dB levels the speaker
showed no sign of strain. I never listen
louder than 90 dB as I would exceed OSSHA’s
noise limitations for the workplace, and would
have to turn myself in for punishment. Hint:
outside of favorable genetics, reaching the
age of 54 and still being able to hear a 16
kHz tone is due largely to avoiding 90 db +
volume levels of any sound.
So a very high recommendation indeed for this
jewel of a speaker. Taking the effort to drive
it with high quality ancillaries and using it
in intimate rooms allows one to sidestep the
huge cost and frustration of attaining truly
high-resolution performance.
Specifications:
Sensitivity (2.83 V/1 m): 86 dB
Recommended Amp. Power:
Small size rooms: >25 watts
Medium size rooms: >65 watts
Frequency Response (+/- 3 dB): 45 Hz - 26 kHz
Resonance Frequency: 47 Hz
IEC Long Term Power Handling: 150 watts
Impedance, Nominal: 4 ohms
Impedance, (20-200 Hz):
3.4 - 19.3 ohms
Impedance, (200-20 kHz):
3.4 - 6.7 ohms
Impedance, Phase Shift (20-200 Hz):
-49° - +45°
Impedance, Phase Shift (200-20 kHz):
-4° - +18°
Internal Cabinet Volume: 10 liters
Weight: 7.2 kg
Dimensions (W x H x L): 204 x 330 x 256 mm
Crossover: 2 way, impedance corrected Woofer 6
dB/oct; Tweeter 6 dB/oct
Crossover Frequencies: 2700 Hz
Tweeter: 28 mm soft dome.
Magnetic fluid.
Woofer: 6-inch with die cast chassis.
One piece molded polypropylene cone.
75 mm pure aluminum wire voice coil
wound on Kapton former. Bass Reflex loading.
Available in Maple and Cherry finishes.
Price: $1400/pair
Stand 2: $450/pair
Address:
U.S. Distributor:
Dynaudio North America
1144 Tower Lane
Bensenville, Il 60106
Telephone: 630 238 4200
Website:
http://www.dynaudiousa.com

|
