| Audes 535 Loudspeaker |
| |
|
Joe Lamano |
|
23 July 2003 |
Specifications
Design: 2-Way video shielded; (2)6˝" cone
woofers; 1” dome tweeter
Impedance: 4 Ohm
Frequency Range: 47-20000 Hz
LF Corner (-6 db): 40 hz
Crossover Frequency: 20khz
Sensitivity: 89 db
Dimensions: 46” × 8” × 13˝“
(H × W × D)
Weight: 59 lbs.
Price: $1599
Address:
AUDES USA INC.
58 Winding Brook Drive
Matawan, NJ 07747
Telephone: (732) 921-1241
Fax: (732) 765-0052
Website:
www.audes.com
Email: info@audes.com
Audes, the Estonia-based loudspeaker company,
has released a new product line with the same
focus—great sound at a reasonable price—but
with a slightly different twist this year.
With the “Maestro” product line, Audes is
attempting to meet many consumer needs with a
single speaker, versus focusing on
accommodating pure audiophile needs. My first
introduction to Audes was slightly over one
year ago when I had the opportunity to review
the Audes Blues loudspeaker. I was very
impressed by the sound of the Blues,
especially for the price. So naturally, I was
very interested when I was asked to listen to
the new Audes 535’s.
The 535’s are designed to suit the needs of
audio and video enthusiasts that share their
living space with a home theatre and/or audio
system. The designers at Audes realize that
these days, people have merged their audio and
video systems into one living space, instead
of a dedicated “listening room.” The new
approach taken by Audes was interesting to me,
and I became curious to hear how the 535
sounded compared to the Blues and other
speakers.
The 535’s arrived in boxes similar to that of
the more expensive Blues speakers; however,
the boxes consisted of only double cardboard
and did not use the thin wood liners on all
sides. Thanks to their tall and narrow design,
these speakers do not take up very much floor
space, and are easier to place than side
firing woofer designs like the Blues. The
internal video shielding allows the 535
speakers to be placed adjacent to a television
set for home theater use, without distorting
the picture. To complement the loudspeakers,
Audes offers a matching center channel
speaker, powered subwoofer, and bookshelf
speakers that can be used for the rear
channels, for a complete home theater setup.

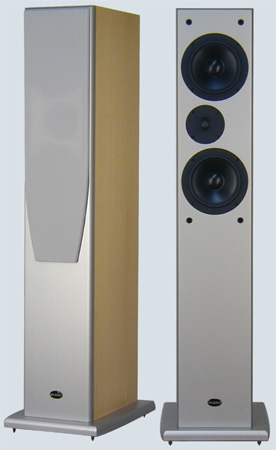

The 535’s are the largest loudspeaker in the
Maestro line. Each speaker is only 8” wide,
13” deep, but stands tall at 46” with the base
and spikes installed.
At first glance, the 535’s appear very similar
to the Blues, especially from the front, as
the tweeter is positioned between two other
drivers. They are also built with the same
high quality and craftsmanship. The pair I
received was finished in a light cherry color;
they have an elegant, tall and narrow design
with a real wood veneer finish on the sides
and top, and a long narrow grille that extends
the entire face of the speaker. I was
impressed that Audes chose to use a real wood
veneer instead of the vinyl veneer often found
on many other speakers in this price range. I
feel the real wood veneer gives the speaker a
more expensive, furniture-quality look. The
entire cabinet is internally braced, and built
using 19mm MDF. The front and rear of the
speaker is finished with a black painted MDF
layer to support the drivers and dampen the
cabinet. In the rear of the speaker are two
large bass ports and two pairs of gold plated
5-way binding posts for bi-wiring.
The 535’s use a 2-way configuration versus the
3-way configuration of the Blues. The 1-inch
tweeter mounted between the two woofers is
made by SEAS, and the low frequencies are
driven from two front mounted 6-inch
polypropylene woofers (introduced this year
and designed and built by Audes). The internal
wiring is composed of different cables
provided by DH Labs, and the caps are made by
F&T in Germany. Sonically, the 535’s are very
crisp and clear, but not as smooth in the
midrange as the more expensive Blues. The
resolution and soundstage of this speaker is
very good for the price range. I must admit
that at first, I felt the 535’s were lacked
bass and sounded bright. But after almost a
48-hour break-in period, the bass response
became tighter and deeper, and the highs had
softened slightly. I should also mention that
I make this statement after becoming very
accustomed to listening to my reference pair
of
Talon Ravens, which boast extraordinary
bass with a wide and detailed soundstage. With
proper placement in the listening area, the
535’s are capable of being self-sufficient,
although at times, I did find they struggled
to produce significant low frequency volume
with deep bass notes—a situation that can be
remedied with a subwoofer. As I make these
points, I should also note that the 535’s are Audes’ mid-level floor-standing speaker. The
larger Blues and Orpheus speakers provide
greater musical qualities, but at a higher
price.
I connected the 535’s to my
Pass Labs X150
amplifier, knowing that this amp would not
provide coloration that could hide the
speaker’s characteristics, and placed the
speakers 1.5’ from the back wall and 11’
apart, I found that this configuration
achieved optimal imaging and low frequency
response in my area. As I played Come Away
With Me [Blue Note BN7243] by Norah Jones, the
small LF drivers moved quickly, delivering
tight, fast bass that was well controlled and
musical. The mid-bass volume was better than I
expected from the small low frequency driver
configuration. The lower extension was good,
but sometimes would not hit some of the lower
ranges—not uncommon for a speaker in this
price range. Midrange presence was strong but
not overpowering; Norah’s piano and vocals
were presented with good definition and
imaging within the soundstage. I found the
same sonic characteristics when listening to
Rickie Lee Jones’ Pop Pop: good vocal and
midrange reproduction, as well as tight and
fast acoustic bass response. Similar to other
European manufactured speakers, I found the
high and mid-range reproduction of the 535’s
slightly forward and brighter than the
typically relaxed sound of comparably priced
US manufactured speakers.
To test the speaker’s resolution, I listened
to a re-mastered 96kHz 24-bit recording of
"L.A. Woman" [Elektra 75011-2] by The Doors. I
find listening to Riders on the Storm to be a
good test because I have noticed that many
components, not only speakers, sometimes
cannot resolve the detail of the falling rain,
present in the background throughout the
track. However, I was confident that all
equipment in the signal chain driving the
speakers was able to reveal this detail. I
found the 535’s did a good job resolving the
detail, but sometimes struggled to separate
the rain from the soft taps of the cymbals.
But don’t get me wrong, I have heard speakers
that cost much more have difficulty with this,
and at the 535’s price point, I think they do
a very good job. While listening to the trio
of Hargrove, McBride, and Scott play their
renditions of Charlie Parker songs on
“Parker's Mood” [VERVE 314 527 907-2], the
535’s handled the power of the Pass Labs X150
well, even at high volumes. The bass was
controlled and defined, especially in the
mid-bass area, although some roll-off occurred
towards the lower end. Transient horn passages
blasted with a clean sharpness, bright, but
not harsh. Considering the price range of the
535’s, imaging is good—not as open and wide as
more expensive speakers, but then again, that
is to be expected.
The Audes 535 is built in the Audes tradition
and therefore exhibits fine craftsmanship,
sleek styling, and musical sound. I believe
the Audes 535 is an all around top performer
that competes well with some of the larger and
more well known high-end speaker designs in
the under $2,000 price range.

|
