| The
Audes
Blues
Loudspeakers |
|
|
Joe
Lamano |
|
15
May 2002 |
Specifications
Nominal
Impedance: 4 Ohms
Maximum Power: 200
W
Frequency Range
+/- 2 dB: 45-20000
Hz
Crossover
Frequencies:
200/3500 Hz
Sensitivity
(2.83V/1m): 90 dB
Tweeter: 25 mm
(1") soft
dome
Midrange: 2 × 110
mm (4.5")
cone type
Woofer: 200 mm
(8") cone
type
Dimensions: 1190
× 206 × 370 mm
(47" ×
8.25" ×
14.5")
base: 250 × 400
mm (10" ×
15.75")
Weight: 35 Kg (78
lbs)
Address:
Audes USA, Inc.
58 Winding Brook
Drive
Matawan, NJ 07747
Telephone:
866-24-AUDES
Fax: 732.765.0052
Email: info@audes.com
Website: www.audesusa.com/
Approximately
eighteen months
ago, I decided
that I was going
to upgrade my
amplifier. What I
didn't realize was
that the process
would snowball
into a complete
overhaul of my
system. The
amplifier led to
changing my
processor, which
lead to converting
from a stand-alone
CD player to a
transport/DAC, and
then to an upgrade
of interconnects
and speaker
cables. At this
point I thought my
new system was
complete, but I
was wrong. I was
discussing my
recent purchases
with an audiophile
friend of mine,
Leon Rivkin, and
he noted that my
system would not
be complete
without upgrading
my speakers. I
believe what he
told me was:
"Speakers are
the endpoint of
your system; they
are responsible
for speaking to
the listener and
therefore are an
absolutely
critical
component. A flat
sounding or overly
colored speaker
can ruin a
perfectly good
audio
system."
Feeling that I was
shorting myself, I
took the bait and
asked him for
speaker
recommendations to
compliment my
system. I
explained that I
was looking for
speakers that I
could use for
critical music
listening and also
use for home
theater. I also
explained that my
system was in the
$13,000 - $15,000
range, so I wanted
speakers to compliment
my current
equipment, not
cost as much.
Over
the next couple of
days we researched
various speakers
from various
companies in the
$5,000 price
range, when he
sent me a link to www.audesusa.com.
When I visited the
site, I learned
somewhere across
the Atlantic in
Estonia, formally
part of the Soviet
Union, a former
transformer and
cable company was
now producing an
audiophile line of
speakers. In 1984,
Audes began
manufacturing high
fidelity
loudspeakers and
speaker units,
providing
listeners
expensive sound
and distinctive
styling at
reasonable prices.
The Blues are the
flagship
loudspeaker of
Audes, at $2,000
pair, and are the
rival of other
brands priced
three times
higher.
Additionally,
Audes makes a
matching center
channel speaker
and small monitors
that can be used
as matching rear
speakers. So we
called Naum
Dorkham and asked
if he would send a
pair of Blues for
review. One week
later I received
the speakers from
a local Audes
reseller.
Luckily
I borrowed my
wife's SUV and
enlisted Leon to
help me carry the
speakers, because
I was very
surprised when I
received two large
coffin shaped
crates weighing
over 90 pounds
each. Opening the
shipping crates, I
realized that hand
craftsmanship and
attention to
detail were key
ingredients to
these
loudspeakers. As I
unpacked the
speakers from
their coffin like
shipping cartons,
I was immediately
impressed by the
look. The pair I
received for
review had a black
medium gloss
finish, though
Audes offers
several other wood
finishes, which
looked very nice
next to my
Mitsubishi Diamond
wide screen
television. The
Blues are tall and
sleek with simple
lines and European
styling. Each
speaker weighs
almost 80 pounds
and stands nearly
4 feet tall with
the spikes
installed. The
sonically
transparent
grilles cover the
front of the
speaker from top
to bottom, with a
subtle taper near
the base,
providing a unique
and finished look.
Anyone who has
seen these
speakers in my
listening room has
commented on their
distinctive
styling. But the
real fun is
letting them
listen to how they
sound.
When
I looked at the
rear of these
speakers, the
massive binding
posts on these
speakers surprised
me. There are four
large, gold
plated, 5-way,
binding posts
capable of
supporting bi-wire
and bi-amp
configurations. As
I connected my
amplifier, in a
bi-wired
configuration, I
noticed that the
binding posts of
the Blues are not
the standard size.
The shafts of
these binding
posts are wider
than the binding
post of most other
speakers and
therefore are not
very accommodating
to speaker cables.
The workaround I
found for this
situation was to
slide one side of
the spade
connector through
the hole in the
binding post
shaft, leaving the
other side of the
spade connector
touching the base
of the binding
post. This may
sound kluge, but
actually is
working very well
and provides a
complete
connection. Though
I was very
surprised by this
choice of binding
post, I was able
to connect the
speaker cables and
begin listening!

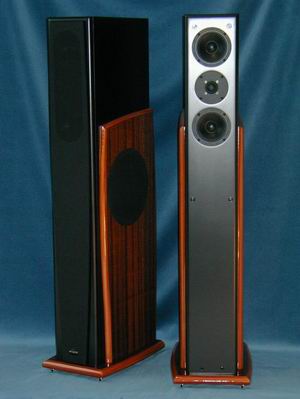

The
Blues are Audes
original design, a
3-way, 3-chamber,
dual step, vented
full range
loudspeaker.
Inside the tall
sleek wood
cabinets are two
4.5" midrange
drivers and a
single 1"
tweeter positioned
in a
Midrange-Tweeter-Midrange
arrangement. For
bass, each
loudspeaker is
equipped with a
single side-firing
8" woofer
with a rear-facing
baffle. The Blues
are sold in
left-right
symmetrical pairs
and can be
arranged with the
woofers firing to
the inside (facing
each other) or to
the outside
(facing away from
each other). The
cabinets, drivers
and crossovers are
almost entirely
hand crafted in
Estonia. Audes
uses their own
in-house developed
midrange and low
frequency drivers,
while the tweeter
is provided by
SEAS™ and the
internal wiring is
provided by DH
Labs™. The
choice of in-house
and select
components are
very well matched,
however these
speakers are not
video shielded and
therefore can not
be placed very
close to a
television.
Initial
Setup
I
connected the
Blues to my
Sunfire Signature
Stereo amplifier
using Acoustic Zen
Hologram bi-wire
speaker cables
with both the
tweeter/midrange
and low frequency
drivers all
connected the
voltage source
output of the
Sunfire. I placed
the speakers on
either side of my
television,
approximately 7'
apart from each
other and 10' from
the primary
listening
position. Each
speaker is
approximately
16" inches
from the rear
wall, 48"
from the outer
walls, and 8"
away from the
television. I
originally placed
the Blues closer
to the television,
but the picture
became distorted
because the
speakers are not
shielded.
As
I first started
playing Miles
Davis Kind of
Blue [Columbia
64935] through the
Blues, I
immediately
noticed the
dynamic range and
detail that these
speakers posses. I
was very pleased
with the amount of
low frequency
response these
speakers have,
especially given
their tall and
thin cabinet
design. The Blues
brought this jazz
must-have to life
with amazing
clarity and
resolution.
Provided with a
good dose of power
from the Sunfire
amplifier, I felt
like the Blues put
me in the room
while this album
was being
recorded. I was so
impressed by the
outstanding
soundstage,
dynamic range, and
amazing detail of
these speakers
that I invited a
fellow jazz fan
and audiophile
over to listen.
Immediately I
noticed he could
feel the energy of
these speakers as
he sat silently,
tapping his foot
and bobbing his
head, listening.
As we listened to
John Coltrane's Soultrane
[Prestige 7142],
we were able to
pinpoint the
location of each
musician and hear
Coletrane's
breathe as he
exhaled while
playing the
saxophone.
With
most of the
recordings I
listened to, the
brass wind
instruments,
cymbals, and voice
all sounded
natural, not harsh
or bright. The
bass was amazingly
detailed, not over
or under stated,
and never booming
or uncontrolled.
Also, the Blues
bring typically
less noticeable
rhythm sections,
like percussion
instruments,
accurately into
the soundstage.
Nevertheless, on
albums that are
not produced with
great care, the
Blues may, at
times, sound
bright or harsh. I
only noticed this
on some pop
recordings that
were not paid the
care and attention
given to true
audiophile
recordings.
Some
Fine Tuning
Now
that I had a small
sense of what
these speakers
could do, I
decided to modify
my configuration.
I continued using
the Sunfire
Signature Stereo
amplifier and
Acoustic Zen
Hologram speaker
cable, but this
time I connected
the midrange and
high frequency
drivers to current
source outputs and
kept the low
frequency driver
connected to the
voltage source.
The voltage source
provided accurate
punch, power, and
control to the
woofer, while
current taps fed a
warmer, tube-like
sounding signal to
the two midranges
and single
tweeter. The Blues
responded much
better to this new
configuration. The
bass remand tight
and articulate and
the midrange and
tweeter became
smoother and more
natural sounding.
This configuration
really highlighted
the Blues ability
to realistically
reproduce vocals.
The
Blues have the
ability to resolve
fine levels of
detail in the
music, which make
the Blues
especially
exciting for jazz
and classical
listeners. As I
listened to Dave
Brubeck play on Time
Out [Columbia
65122], I could
hear the hammers
hitting the piano
strings, detail
that reminded me
that the piano is
a percussion
instrument. I
noticed
high-resolution
recordings,
including 20-bit
remasters, HDCD,
and DVD-Audio made
my system sound
incredible. I
truly enjoyed
listening to all
my Jazz favorites
on the Blues.
These speakers
bring the music to
life with an
amazing ability to
recreate the
soundstage and
resolve detail.
The
harmonica in
"I don't get
it" from The Trinity
Sessions on
the Cowboy Junkies
[RCA 8568-2-R],
sounded incredibly
real, and the
details of the
drums being played
with brushes was
cleanly
articulated. This
album was recorded
in a cathedral and
the Blues have no
problem
reproducing the
sense of space and
openness of this
large empty area.
The Blues
exhibited total
control over
recreating
dynamics,
reproducing the
general softness
and mellow tone of
this album and
exercising the
ability to
accurately
recreate the
frequent peaks in
dynamic range of
instruments like
the guitar and
harmonica and the
singers voice.
I
was first turned
on to Rickie Lee
Jones' Pop Pop
[Geffen] at the
Sunfire website on
their Best Demo
page, so I was
surprised when I
learned my wife
already had this
CD in our
collection. After
one listen, I
quickly added this
album to my
personal reference
collection. On the
lower end of the
frequency
spectrum,
"detail"
is the first and
lasting impression
the Blues will
make on a
listener. These
speakers will not
rattle your
neighbor's windows
for,
unfortunately,
they will not go
down to 20 Hz, but
you will not miss
a note of the
stand-up bass on
this album.
Midrange vocal
presence is
another strong
characteristic of
the Blues. The
realism and
presence of Rickie
Lee's voice
throughout the
album is
wonderful. On
"Dat Dere,"
the Blues create a
three-dimensional
soundstage for the
child in the
beginning of the
song, filling the
room with the
child's voice as
it moves about the
soundstage.
Conclusion
The
Blues are a very
accurate and
transparent
speaker; they make
you feel as if you
are there with the
musicians on stage
or in the
recording studio.
The unique
cabinet, with its
3-way, dual-step
design, provides
much more bass
response than I
had expected from
such a tall, thin
design. The
dynamic range,
mid-range
accuracy, and
punchy bass give
the Blues an
amazing ability to
convey the music's
energy. Not only
do you hear all
the music with the
Blues, but they
make you feel the
music too.
Although the Blues
are not video
shielded and I
find the binding
posts to larger, I
would recommend
the Audes Blues to
anyone looking for
speakers at this
price point -- and
higher. They offer
the sound and
styling of
speakers costing
much more.

|
